Product Details
D009248C115R84
PRODUCT SPECIFICATION
Pitch
3/8"
Gauge
.058"
Saw Chain Series
73series
Type
Replacement
Drive Link
84E
Bar Length
24"
Rivet Count
5

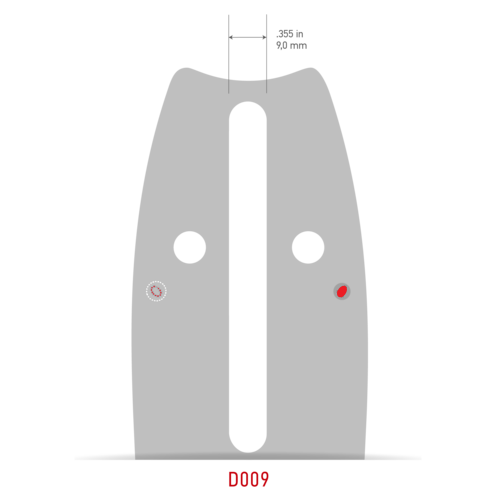

Tail Mount
D009
Enquiry
Description & Details
Description

There is a particular design of nose to make bar have a longer life and manufactured from special alloy steel for high-strength body for resisting the wear extremely. As for the splicing point, which is between the body and the nose, would be fasten by a rivet and held by overlapping ears.


Saws in 62cc and larger.

Details:

· Pitch:3/8        Gauge:.058        Length:24

· Suitable for petrol saws in 62cc and larger used by professional users.

· Suitable for 3/8" 's 73series chains.

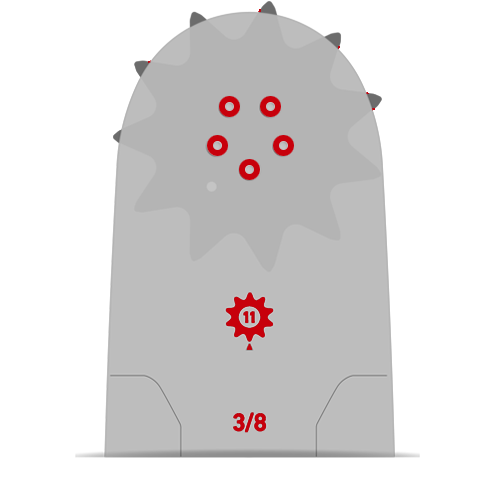

· Sprocket nose is replaceable.

· Special sprocket-nose design increases the life of guide bar by 50% than previous.

· Proven oil-retaining feature prevents oil from running out of the bar's tail, keeps more oil on the bar and chain.

Brand/Model
HUSQVARNA®
162,61,181,185,2100,2100,266,160,260 ,268,272,272,281,285,288,365,380,394,395,390,371,394,298,380,480,65,66,77,70,372,385,395,480,562XP,570,575,576XP,575XP,1100,2101,3120,3120,395
JONSERED®
625,630,630SUPER,670,670CHAMP,2077,2083,2094,2095,2095,2065,2071,2171,2165,2186,2188820/830*,920/930*(*with 9mm stud)
